AMI BEARINGS MUCNFL201-8B
#MUCNFL201-8B
On request

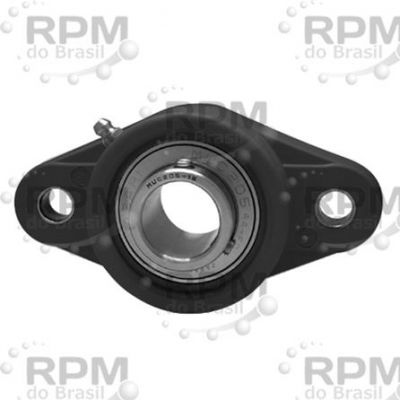

Flange-Mount Ball Bearing Unit - Two-Bolt Flange, 0.5000 in Bore, PBT Thermoplastic Housing, Standard Duty, Set Screw Locking, Contact with Flinger
Price on request — a consultant will confirm lead time and terms.
Need to confirm compatibility?
Talk to a technical consultant
Specifications
| Brand | AMI BEARINGS |
| Category | FLANGE-MOUNT BALL BEARING UNITS |
| Bore diameter | 0.5 in |
| Radial dynamic load capacity | 2150 lbf |
| Bolt center-to-center length | 3.5469 in |
| Radial static load capacity | 1080 lbf |
| Overall length/diameter | 4.4375 in |
| Seal type | Contact with Flinger |
| Bore type | Round |
| Length through bore | 0.866 in |
| Duty type | Standard Duty |
| Lubrication type | Lubrication Fitting |
| Mounting type | Two-Bolt Flange |
| Series | MUCNFL200B |
| Housing material | PBT Thermoplastic |
| Replacement bearing | MUC201-8 |
| Locking device | Set Screw |
