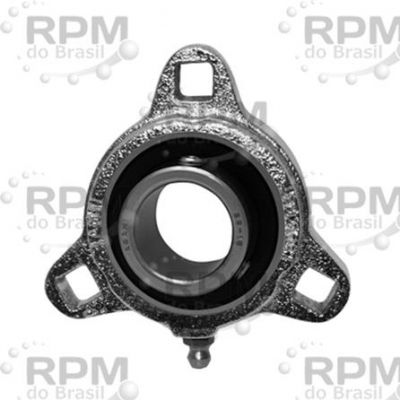

AMI BEARINGS BTM204-12NPMZ2
#BTM204-12NPMZ2
On request
Flange-Mount Ball Bearing Unit - Three-Bolt Flange, 0.7500 in Bore, Malleable Iron - Nickel Protection Housing, Standard Duty, Set Screw Locking, Contact Seal
Price on request — a consultant will confirm lead time and terms.
Need to confirm compatibility?
Talk to a technical consultant
Specifications
| Brand | AMI BEARINGS |
| Category | FLANGE-MOUNT BALL BEARING UNITS |
| Bore diameter | 0.75 in |
| Radial dynamic load capacity | 2890 lbf |
| Bolt circle diameter | 2.8125 in |
| Radial static load capacity | 1500 lbf |
| Overall length/diameter | 3.5625 in |
| Seal type | Contact Seal |
| Bore type | Round |
| Length through bore | 0.972 ft |
| Duty type | Standard Duty |
| Lubrication type | Lubrication Fitting |
| Mounting type | Three-Bolt Flange |
| Series | BTM200NPMZ2 |
| Housing material | Malleable Iron - Nickel Protection |
| Replacement bearing | B4-12MZ2 |
| Locking device | Set Screw |
