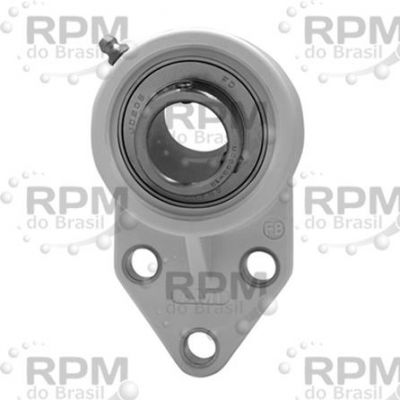

AMI BEARINGS UCFBL205MZ2W
#UCFBL205MZ2W
On request
Flange-Mount Ball Bearing Unit - Three-Bolt Bracket Style, 25 mm Bore, PBT Thermoplastic Housing, Standard Duty, Set Screw Locking, Contact with Flinger
Price on request — a consultant will confirm lead time and terms.
Need to confirm compatibility?
Talk to a technical consultant
Specifications
| Brand | AMI BEARINGS |
| Category | FLANGE-MOUNT BALL BEARING UNITS |
| Bore diameter | 25 mm |
| Vertical bolt spacing | 28.6 mm |
| Bore type | Round |
| Shaft centerline height | 46 mm |
| Duty type | Standard Duty |
| Hub diameter | 70 mm |
| Mounting type | Three-Bolt Bracket Style |
| Bracket width | 63.5 mm |
| Housing material | PBT Thermoplastic |
| Unit standoff | 41.2 mm |
| Locking device | Set Screw |
| Bolt size | M10 |
| Radial dynamic load capacity | 1430 kgf |
| Lubrication type | Lubrication Fitting |
| Radial static load capacity | 800 kgf |
| Series | UCFBL200MZ2W |
| Seal type | Contact with Flinger |
| Replacement bearing | UC205MZ2 |
| Length through bore | 34 mm |
| Manufacturer product page | http://catalog.amibearings.com/item/three-bolt-flange-units-3/-three-bolt-flange-bracket-unit-ucfbl200mz2-series/ucfbl205mz2w |
| Horizontal bolt spacing | 41.3 mm |
