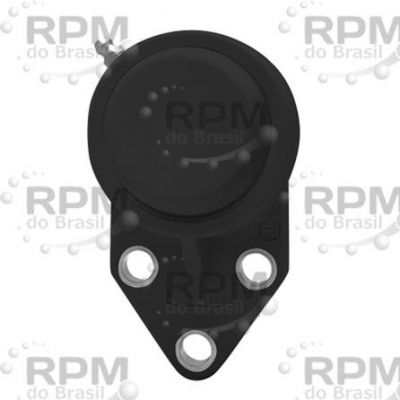

AMI BEARINGS MBFBL5-16CEB
#MBFBL5-16CEB
On request
Flange-Mount Ball Bearing Unit - Three-Bolt Bracket Style, 1.0000 in Bore, PBT Thermoplastic Housing, Standard Duty, Set Screw Locking, Contact Seal
Price on request — a consultant will confirm lead time and terms.
Need to confirm compatibility?
Talk to a technical consultant
Specifications
| Brand | AMI BEARINGS |
| Category | FLANGE-MOUNT BALL BEARING UNITS |
| Bore diameter | 1 in |
| Horizontal bolt spacing | 1-5/8 in |
| Bore type | Round |
| Vertical bolt spacing | 1-1/8 in |
| Duty type | Standard Duty |
| Shaft centerline height | 1-13/16 in |
| Mounting type | Three-Bolt Bracket Style |
| Hub diameter | 2-3/4 in |
| Housing material | PBT Thermoplastic |
| Bracket width | 2-1/2 in |
| Locking device | Set Screw |
| Unit standoff | 2-11/64 in |
| Radial dynamic load capacity | 2680 lbf |
| Bolt size | 3/8 |
| Radial static load capacity | 1420 lbf |
| Lubrication type | Lubrication Fitting |
| Seal type | Contact Seal |
| Series | MBFBL200CEB |
| End type | Closed Cover & Back Seal |
| Replacement bearing | MB5-16 |
| Length through bore | 1.063 in |
| Manufacturer product page | http://catalog.amibearings.com/item/three-bolt-flange-units-6/e-bracket-unit-with-closed-cover-mbfbl200ce-series/mbfbl5-16ceb |
