On request
AMI BEARINGS
Call
AMI BEARINGS UCFCSX13-40NP
#UCFCSX13-40NP
On request

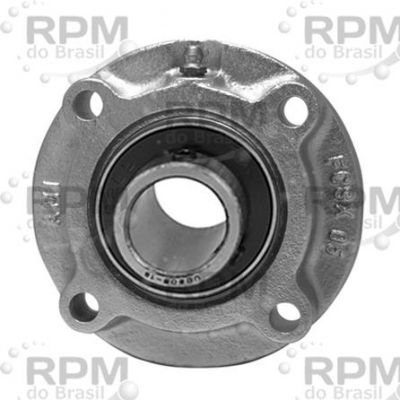

Flange-Mount Ball Bearing Unit - Four-Bolt Piloted, 2.5000 in Bore, Cast Iron - Nickel Protection Housing, Medium Duty, Set Screw Locking, Contact with Flinger
Price on request — a consultant will confirm lead time and terms.
Need to confirm compatibility?
Talk to a technical consultant
Specifications
| Brand | AMI BEARINGS |
| Category | FLANGE-MOUNT BALL BEARING UNITS |
| Bore diameter | 2.5 in |
| Radial static load capacity | 9900 lbf |
| Bolt circle diameter | 6.5 in |
| Seal type | Contact with Flinger |
| Overall length/diameter | 7.625 in |
| Length through bore | 2.937 in |
| Bore type | Round |
| Pilot diameter | 5.5 in |
| Duty type | Medium Duty |
| Unit standoff | 2.181 in |
| Mounting type | Four-Bolt Piloted |
| Bolt size | 1/2 |
| Housing material | Cast Iron - Nickel Protection |
| Lubrication type | Lubrication Fitting |
| Locking device | Set Screw |
| Series | UCFCSX00NP |
| Radial dynamic load capacity | 14000 lbf |
| Replacement bearing | UCX13-40 |
