On request
AMI BEARINGS
Call
AMI BEARINGS UEFCS210
#UEFCS210
On request

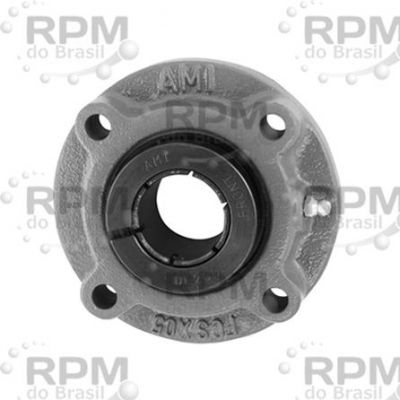

Flange-Mount Ball Bearing Unit - Four-Bolt Piloted, 50 mm Bore, Cast Iron Housing, Standard Duty, Accu-Loc Locking, Contact with Flinger
Price on request — a consultant will confirm lead time and terms.
Need to confirm compatibility?
Talk to a technical consultant
Specifications
| Brand | AMI BEARINGS |
| Category | FLANGE-MOUNT BALL BEARING UNITS |
| Bore diameter | 50 mm |
| Seal type | Contact with Flinger |
| Bolt circle diameter | 130 mm |
| Length through bore | 52.6 mm |
| Overall length/diameter | 155 mm |
| Pilot diameter | 108 mm |
| Bore type | Round |
| Unit standoff | 41.6 mm |
| Duty type | Standard Duty |
| Bolt size | M12 |
| Mounting type | Four-Bolt Piloted |
| Lubrication type | Lubrication Fitting |
| Housing material | Cast Iron |
| Series | UEFCS200 |
| Locking device | Accu-Loc |
| Replacement bearing | UE210 |
| Radial dynamic load capacity | 3600 kgf |
| Manufacturer product page | http://catalog.amibearings.com/item/accu-loc-concentric-collar-locking-6/king-piloted-flange-cartridge-unit-uefcs200-series/uefcs210 |
| Radial static load capacity | 2370 kgf |
