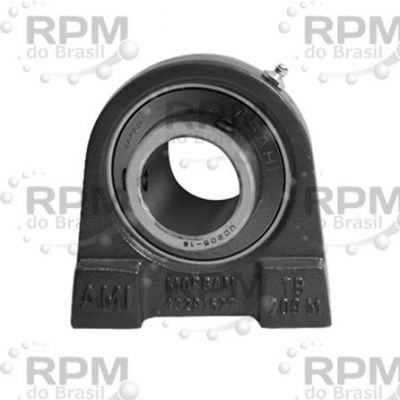

AMI BEARINGS UCTB210-28

Name: AMI BEARINGS UCTB210-28
Brand: AMI BEARINGS
SKU: UCTB210-28

#UCTB210-28 On request

Category PILLOW BLOCK BALL BEARING UNITS

Part Number UCTB210-28

UCTB210-28 1-3/4 PILLOW BLOCK

Manufacturer description

Pillow Block Ball Bearing Unit - Tapped Base, 1.7500 in Bore, Cast Iron Material, Medium Duty

Price on request — a consultant will confirm lead time and terms.

Talk to a technical consultant

Specifications

Brand	AMI BEARINGS
Category	PILLOW BLOCK BALL BEARING UNITS
Mounting	Tapped Base
Overall width	2-9/32 in
Bore diameter	1.75 in
Radial dynamic load capacity	7980 lbf
Bore type	Round
Radial static load capacity	5220 lbf
Base to bore centerline	2.25 in
Base width	2 in
Duty type	Medium Duty
Bolt center-to-center length	4 in
Housing material	Cast Iron
Bolt size	5/8-11
Locking device	Set Screw
Lubrication type	Lubrication Fitting
Seal type	Contact with Slinger
Series	UCTB200SP
Overall length	5.5 in
Replacement bearing	UCX09-28
Overall height	4.625 in
