BROWNING VF4S-232S

Name: BROWNING VF4S-232S
Brand: BROWNING
SKU: VF4S-232S

#VF4S-232S On request

Brand BROWNING

Category FLANGE-MOUNT BALL BEARING UNITS

Part Number VF4S-232S

765594

Manufacturer description

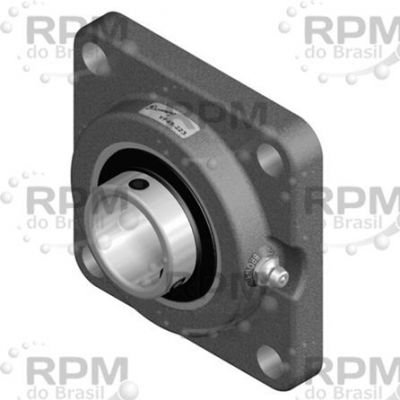

Flange-Mount Ball Bearing Unit - Four-Bolt Flange, 2.0000 in Bore, Cast Iron Housing, Standard Duty, Set Screw Locking, Single Lip Contact with Flinger

Price on request — a consultant will confirm lead time and terms.

Need to confirm compatibility?

Talk to a technical consultant

Call

BROWNING — BROWNING VF4S-232S

With Seal Flinger

Specifications

Brand	BROWNING
Category	FLANGE-MOUNT BALL BEARING UNITS
Bore diameter	2 in
Radial static load capacity	6601 lb
Bolt center-to-center length	4.375 in
Seal type	Single Lip Contact with Flinger
Overall length/diameter	5.625 in
Length through bore	2.0313 in
Bore type	Round
Maximum operating temperature	200 °F
Duty type	Standard Duty
Finish/coating	Gray Painted
Mounting type	Four-Bolt Flange
Bolt size	0.5625 in
Housing material	Cast Iron
Maximum rpm	2500 RPM
Locking device	Set Screw
Lubrication type	Lubrication Fitting
Expansion type	Non-Expansion Bearing (Fixed)
Series	VF4S 200
Housing width	0.625 in
Application	Browning - Standard
Overall width	2.1563 in
Replacement bearing	VS-232S
Inner ring width	2.0313 in
Manufacturer catalog number	765594
Bearing material	52100 Bearing Steel
Radial dynamic load capacity	7889 lb
Cad drawing	https://www.3dcontentcentral.com/PremiumSSS-Download-Model.aspx?catalogId=12261&id=1069
