BROWNING PBE920X2

Name: BROWNING PBE920X2
Brand: BROWNING
SKU: PBE920X2

#PBE920X2 On request

Brand BROWNING

Category PILLOW BLOCK ROLLER BEARING UNITS

Part Number PBE920X2

730007

Manufacturer description

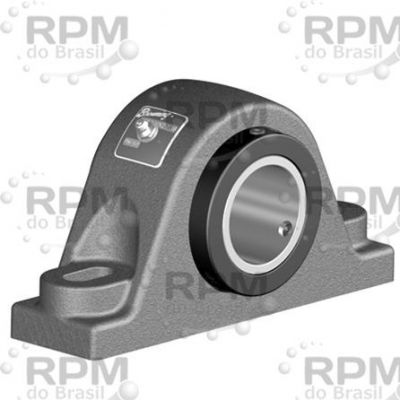

Pillow Block Roller Bearing Unit - 2.0000 in Bore Dia., Two-Bolt Base, Solid Pillow Block, Cast Iron Material, Non-Expansion Bearing (Fixed)

Price on request — a consultant will confirm lead time and terms.

Talk to a technical consultant

BROWNING — BROWNING PBE920X2

Brand	BROWNING
Category	PILLOW BLOCK ROLLER BEARING UNITS
Bore diameter	2 in
Expansion type	Non-Expansion Bearing (Fixed)
Overall length	8.875 in
Finish/coating	Gray Painted
Overall height	4.5 in
Overall width	3-1/2 in
Mounting	Two-Bolt Base
Seal type	Contact Seal
Bearing type	Tapered Roller
Radial dynamic load capacity	8070 lbs
Bore type	Round
Maximum operating temperature	200 Â°F
Housing construction	Solid Pillow Block
Maximum rpm	2000 RPM
Base to bore centerline	2.25 in
Lubrication type	Lubrication Fitting
Duty type	Heavy Duty
Bolt size	5/8 in
Housing material	Cast Iron
Series	PBE920
Locking device	Double Set Screw
Standards met	ABMA, ISO
Bearing material	52100 Bearing Steel
Bolt center-to-center length	6.1875 to 7.2500 in
Manufacturer catalog number	730007
Base width	2.5 in
Cad drawing	https://www.3dcontentcentral.com/PremiumSSS-Download-Model.aspx?catalogId=12261&id=7312
