BROWNING 65V2360J

Name: BROWNING 65V2360J
Brand: BROWNING
SKU: 65V2360J

#65V2360J On request

Brand BROWNING

Category V-BELT PULLEYS

Part Number 65V2360J

3063492

Manufacturer description

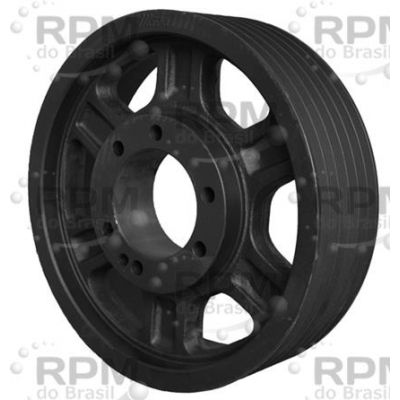

3063492 Bushing Bore V-Belt Pulley - 5V Belt Section, 6 Groove, 23-1/2 in Pitch Dia., 23.60 in O.D., QD Bushed, J Series Bushing, Cast Iron Material

Price on request — a consultant will confirm lead time and terms.

Talk to a technical consultant

Specifications

Brand	BROWNING
Category	V-BELT PULLEYS
Number of grooves	6
Keyway size	1 x 1/2 (3-7/8 to 4-1/2 Bore) , 1/2 x 1/4 (1-13/16 to 2-1/4 Bore) , 3/4 x 3/8 (2-13/16 to 3-1/4 Bore) , 3/8 x 3/16 (1-7/16 to 1-3/4 Bore) , 5/16 x 5/32 (1-5/16 to 1-3/8 Bore) , 5/8 x 5/16 (2-5/16 to 2-3/4 Bore) , 7/8 x 7/16 (3-3/8 to 3-3/4 Bore) in
Outside diameter	23.6 in
Material	Cast Iron
Length through bore	4.625 in
Bushing bore range	1-1/2 to 4-1/2 in
Face width	4.4375 in
Pitch diameter	23-1/2 in
Belt section size	5V
Overall width	4-7/16 in
Bore type	QD Bushed
Pulley construction	Spoked
Bushing series	J
Cad drawing	https://www.3dcontentcentral.com/PremiumSSS-Download-Model.aspx?catalogId=12261&id=18714
