BROWNING VPS-327
#VPS-327
On request
767502

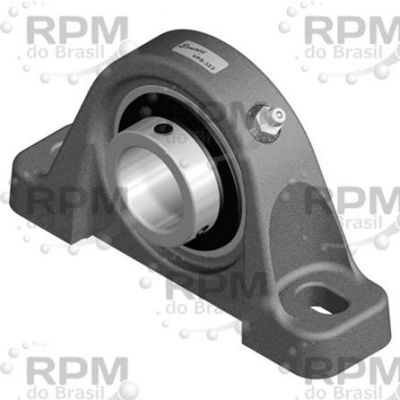

Manufacturer descriptionPillow Block Ball Bearing Unit - Two-Bolt Base, 1.6875 in Bore, Cast Iron Material, Medium Duty, Non-Expansion Bearing (Fixed)
Price on request — a consultant will confirm lead time and terms.
Need to confirm compatibility?
Talk to a technical consultant
BROWNING — BROWNING VPS-327
- With Seal Flinger
Specifications
| Brand | BROWNING |
| Category | PILLOW BLOCK BALL BEARING UNITS |
| Mounting | Two-Bolt Base |
| Maximum operating temperature | 200 °F |
| Bore diameter | 1.6875 in |
| Radial dynamic load capacity | 7889 lb |
| Bore type | Round |
| Radial static load capacity | 5216 lb |
| Base to bore centerline | 2.3125 in |
| Base width | 2.25 in |
| Duty type | Medium Duty |
| Bolt center-to-center length | 5.6250 to 6.6250 in |
| Housing material | Cast Iron |
| Maximum rpm | 3000 RPM |
| Locking device | Set Screw |
| Lubrication type | Lubrication Fitting |
| Seal type | Single Lip Contact with Flinger |
| Series | VPS |
| Expansion type | Non-Expansion Bearing (Fixed) |
| Replacement bearing | VS-327 |
| Overall length | 7.9375 in |
| Application | Browning - Standard |
| Overall height | 4.625 in |
| Manufacturer catalog number | 767502 |
| Finish/coating | Gray Painted |
| Insert material | 52100 Bearing Steel |
| Cad drawing | https://www.3dcontentcentral.com/PremiumSSS-Download-Model.aspx?catalogId=12261&id=2751 |
