HUB CITY INC 0270-02511
#0270-02511
On request

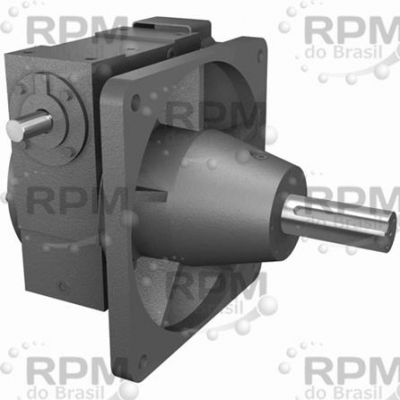

GW707 50/1 R WR Right Angle Worm Gear Speed Reducer - Single Reduction, 50:1 Ratio, 7.00 in Center Distance, Solid Shaft, 1.6250 in Input Size
Price on request — a consultant will confirm lead time and terms.
Need to confirm compatibility?
Talk to a technical consultant
HUB CITY INC — HUB CITY INC 0270-02511
- Rugged Cast Iron Housing
- Oversized Steel Output Shafts
- Premium tapered roller bearings on output shafts
- Large Oil Capacity
Specifications
| Brand | HUB CITY INC |
| Category | RIGHT ANGLE WORM GEAR SPEED REDUCERS |
| Reduction | Single |
| Maximum output torque | 1301 in-lbs |
| Center distance | 7 in |
| Service factor | 1.0 |
| Maximum input horsepower | 8.700 @ 1750 hp, rpm |
| Manufacturer catalog | http://www.hubcityinc.com/documents/8B-MCC17010E10075EHubCityWormSpeedReducers.pdf#page=46 |
| Ratio | 50:1 |
| Cad drawing | http://hubcity-ps.com/psconfig/tab/index.html?prj=worm_gear_drives/single_reduct_wgd/series_gw70/gw707_asmtab.prj&values=MN=GW707 |
| Manufacturer reducer size | GW707 |
| Manufacturer catalog number | 0270-02511 |
| Input type | Solid Shaft |
| Manufacturer upc number | 662798572901 |
| Input size | 1.625 in |
| Shipping dimensions height | 24 in |
| Output type | Solid Shaft |
| Shipping dimensions length | 48 in |
| Output size | 2.937 in |
| Shipping dimensions width | 24 in |
| Style | R |
| Weight | 560 lbs |
| Maximum output rpm | 35 rpm |
