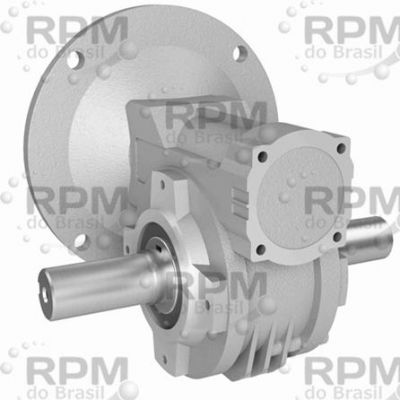

Spartan™ AL504 60/1 A 56C Right Angle Worm Gear Speed Reducer - Single Reduction, 60:1 Ratio, C-Face Quill, 0.6250 in Input Size, 56C Frame
Price on request — a consultant will confirm lead time and terms.
Need to confirm compatibility?
Talk to a technical consultant
HUB CITY INC — HUB CITY INC 0270-00288
- Precision Machined Aluminum Alloy Housing
- Alloy Shafting
- Oversized Bearings
- Vent free design - Factory lubricated
Specifications
| Brand | HUB CITY INC |
| Category | RIGHT ANGLE WORM GEAR SPEED REDUCERS |
| Reduction | Single |
| Maximum output torque | 613 @1750 in-lbs, rpm |
| Maximum input horsepower | 0.486 @1750 hp, rpm |
| Service factor | 1.0 |
| Ratio | 60:1 |
| Manufacturer catalog | http://www.hubcityinc.com/documents/8C-MCC17010E10075EHubCitySpartanWorm.pdf#page=6 |
| Manufacturer reducer size | AL504 |
| Cad drawing | http://hubcity-ps.com/psconfig/tab/index.html?prj=worm_gear_drives/spartan_awgd/spartan_single_reduction/series_al850/al855_asmtab.prj&values=MN=AL855 |
| Input type | C-Face Quill |
| Manufacturer catalog number | 0270-00288 |
| Input size | 0.625 in |
| Manufacturer upc number | 662798433684 |
| Output type | Solid Shaft |
| Shipping dimensions height | 9 in |
| Output size | 1 in |
| Shipping dimensions length | 10-1/2 in |
| Style | A |
| Shipping dimensions width | 9-1/2 in |
| Nema / iec frame size | 56C |
| Weight | 9 lbs |
| Maximum output rpm | 29 @1750 rpm |
