On request
HUB CITY INC
Call
HUB CITY INC 0230-37263
#0230-37263
On request

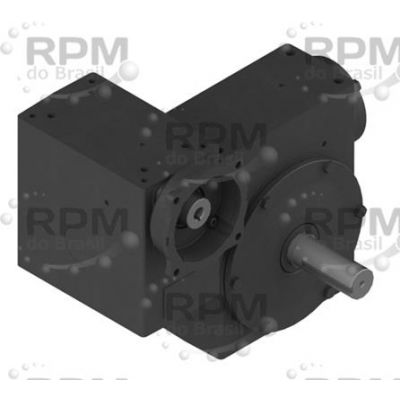

4504 100/1 WR 182TC Double Output Right Angle Worm Gear Speed Reducer - Double Reduction, 100:1 Ratio, 4.50 in Center Distance, C-Face Quill, 1.1250 in Input Size, 182TC Frame
Price on request — a consultant will confirm lead time and terms.
Need to confirm compatibility?
Talk to a technical consultant
HUB CITY INC — HUB CITY INC 0230-37263
- Modular Design
- Universal Mounting Dimensions
- Increased thermal capacity and Increased efficiency
- Cast iron housing
- Viton Seals
Specifications
| Brand | HUB CITY INC |
| Category | RIGHT ANGLE WORM GEAR SPEED REDUCERS |
| Reduction | Double |
| Maximum output torque | 13010 @ 17.5 output in-lbs, , rpm |
| Center distance | 4.5 in |
| Housing material | Cast Iron |
| Maximum input horsepower | 5.580 @ 1750 hp, rpm |
| Service factor | 1.0 |
| Ratio | 100:1 |
| Manufacturer catalog | http://www.hubcityinc.com/documents/8B-MCC17010E10075EHubCityWormSpeedReducers.pdf#page=30 |
| Manufacturer reducer size | 4504 |
| Cad drawing | http://hubcity-ps.com/psconfig/tab/index.html?0 |
| Input type | C-Face Quill |
| Manufacturer catalog number | 0230-37263 |
| Input size | 1.125 in |
| Manufacturer upc number | 662798991658 |
| Output type | Solid Shaft |
| Shipping dimensions height | 24 in |
| Output size | 1.625 in |
| Shipping dimensions length | 48 in |
| Nema / iec frame size | 182TC |
| Shipping dimensions width | 24 in |
| Maximum output rpm | 17.5 rpm |
| Weight | 176 lbs |
