HUB CITY INC 0230-07018
#0230-07018
On request

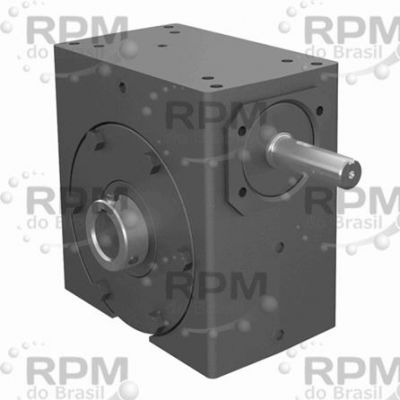

262 40/1 A WR 1.250 Right Angle Worm Gear Speed Reducer - Single Reduction, 40:1 Ratio, 2.63 in Center Distance, Solid Shaft, 0.7500 in Input Size
Price on request — a consultant will confirm lead time and terms.
Need to confirm compatibility?
Talk to a technical consultant
HUB CITY INC — HUB CITY INC 0230-07018
- Modular Design
- Universal Mounting Dimensions
- Increased thermal capacity and Increased efficiency
- Cast Iron Housing
- Alloy Shafting
Specifications
| Brand | HUB CITY INC |
| Category | RIGHT ANGLE WORM GEAR SPEED REDUCERS |
| Reduction | Single |
| Maximum output torque | 1642 in-lbs |
| Center distance | 2.63 in |
| Service factor | 1.0 |
| Maximum input horsepower | 1.580 @ 1750 hp, rpm |
| Manufacturer catalog | http://www.hubcityinc.com/documents/8B-MCC17010E10075EHubCityWormSpeedReducers.pdf#page=32 |
| Ratio | 40:1 |
| Cad drawing | http://hubcity-ps.com/psconfig/tab/index.html?prj=worm_gear_drives/single_reduct_wgd_pcx/series260_pcx/262_pcx_asmtab.prj&values=MN=262 |
| Manufacturer reducer size | 262 |
| Manufacturer catalog number | 0230-07018 |
| Input type | Solid Shaft |
| Manufacturer upc number | 662798959177 |
| Input size | 0.75 in |
| Shipping dimensions height | 11 in |
| Output type | Hollow Bore |
| Shipping dimensions length | 12 in |
| Output size | 1.25 in |
| Shipping dimensions width | 10 in |
| Style | A |
| Weight | 37 lbs |
| Maximum output rpm | 43.8 rpm |
