INA (SCHAEFFLER) RCJY55
#RCJY55
On request
RCJY55-XL-I

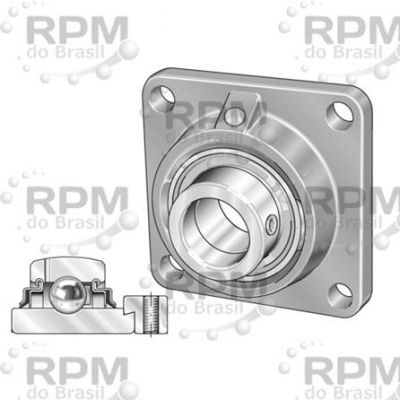

Manufacturer descriptionFlange-Mount Ball Bearing Unit - Four-Bolt Flange, 55 mm Bore, Cast Iron Housing, Standard Duty, Set Screw Locking, Double Lip
Price on request — a consultant will confirm lead time and terms.
Need to confirm compatibility?
Talk to a technical consultant
Specifications
| Brand | INA (SCHAEFFLER) |
| Category | FLANGE-MOUNT BALL BEARING UNITS |
| Bore diameter | 55 mm |
| Radial dynamic load capacity | 9800 lbf |
| Bolt center-to-center length | 130 mm |
| Radial static load capacity | 6600 lbf |
| Overall length/diameter | 162.5 mm |
| Seal type | Double Lip |
| Bore type | Round |
| Length through bore | 64.4 mm |
| Duty type | Standard Duty |
| Finish/coating | Powder Coated |
| Mounting type | Four-Bolt Flange |
| Lubrication type | Lubrication Fitting |
| Housing material | Cast Iron |
| Series | RCJY |
| Locking device | Set Screw |
| Standards met | ABMA, ASTM A48 Class 30 |
| Expansion type | Non-Expansion Bearing (Fixed) |
| Replacement bearing | GYE55KRRB |
