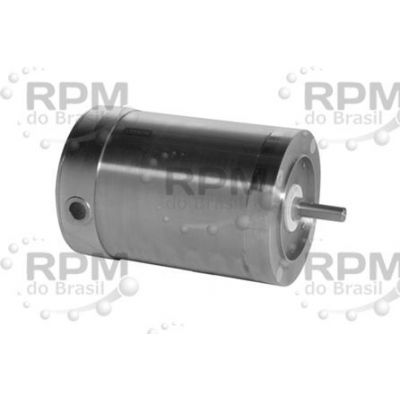

LEESON ELECTRIC CZ6K34WK1A
#CZ6K34WK1A
On request
116482.00,1 1/2HP,56HC,3600RPM,1PH
Manufacturer descriptionGeneral Purpose Washdown Duty Motor (Stainless Steel) - General Purpose Motor (Stainless Steel), 1-1/2 hp, 1 ph, 3600 rpm, 115/208-230 V, 56HC Frame, TEFC (Totally Enclosed Fan Cooled) Enclosure, 60 Hz
Price on request — a consultant will confirm lead time and terms.
Need to confirm compatibility?
Talk to a technical consultant
Specifications
| Brand | LEESON ELECTRIC |
| Category | WASHDOWN DUTY MOTORS |
| Motor category | General Purpose Motor (Stainless Steel) |
| Warranty | 1 Year Warranty |
| Motor phase | 1 ph |
| Bearing type | Ball |
| Motor horsepower | 1-1/2 , 1.50 hp |
| Nema design class | L |
| Synchronous rpm | 3600 rpm |
| Service factor | 1.15 |
| Motor supply voltage | 115/208-230 V |
| Insulation class | F4 |
| Frame size | 56HC |
| Ip rating | 55 |
| Enclosure type | TEFC (Totally Enclosed Fan Cooled) |
| Harmonization code | 8501.40.6040 |
| Frequency rating | 60 Hz |
| Weight | 49 lbs |
| Mounting type | Rigid Base/C-Face Flange |
| Manufacturer catalog | https://cld.bz/zner21w/I |
| Thermal protection | None |
| Manufacturer catalog number | 116482.00 |
| Full load efficiency | 0.0079 |
| Manufacturer upc number | 691720328866 |
| Motor poles | 2-pole |
| Technical specifications | http://www.leeson.com/leeson/searchproduct.do?invoke=viewProductDetails&motorNo=116482.00&productType= |
| Volts @ frequency | 115/208-230 @ 60 Hz |
| 2d drawing | http://leebiz.leeson.com/drawingsearchcomponent/drawing.do?invoke=viewDrawingSearchResults&drawingNo=028621-850&vault=C |
| Shaft diameter | 0.63 in |
| Wiring diagram | http://leebiz.leeson.com/drawingsearchcomponent/drawing.do?invoke=viewDrawingSearchResults&drawingNo=005314.03&vault=C |
| Overall length (c-dimension) | 13.81 in |
