LINK-BELT (RPMBRND) FXWG216EK751
#FXWG216EK751
On request

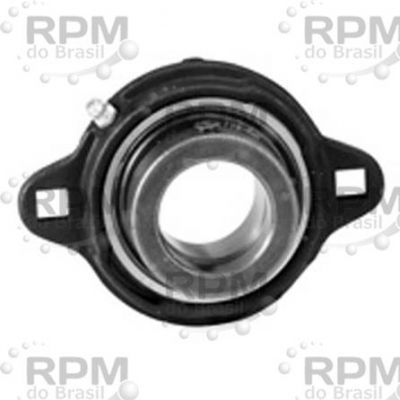

Flange-Mount Ball Bearing Unit - Two-Bolt Flange, 1.0000 in Bore, High-Test Iron Housing, Intermediate Duty, Eccentric Collar Locking, Contact Seal
Price on request — a consultant will confirm lead time and terms.
Need to confirm compatibility?
Talk to a technical consultant
Specifications
| Brand | LINK-BELT (RPMBRND) |
| Category | FLANGE-MOUNT BALL BEARING UNITS |
| Bore diameter | 1 in |
| Radial static load capacity | 1760 lb |
| Bolt circle diameter | 3 in |
| Seal type | Contact Seal |
| Overall length/diameter | 2.625 in |
| Length through bore | 1-7/32 in |
| Bore type | Round |
| Finish/coating | Nickel Plated |
| Duty type | Intermediate Duty |
| Maximum rpm | 6800 RPM |
| Mounting type | Two-Bolt Flange |
| Lubrication type | Lubrication Fitting |
| Housing material | High-Test Iron |
| Series | 200 |
| Locking device | Eccentric Collar |
| Standards met | ANSI/ABMA STD 9-1990 |
| Expansion type | Non-Expansion Bearing (Fixed) |
| Manufacturer upc number | 793699283488 |
| Radial dynamic load capacity | 2430 lbf |
