MARTIN SPROCKET & GEAR 06B30
#06B30
On request

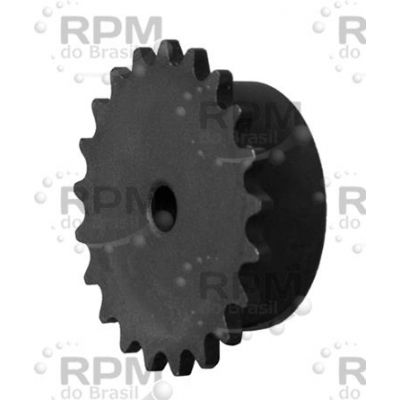

Stock Bore Sprocket - Metric - B Style - 06B / 3/8 in, B Hub, 30 Teeth, 12 mm Stock Bore, Steel Material
Price on request — a consultant will confirm lead time and terms.
Need to confirm compatibility?
Talk to a technical consultant
MARTIN SPROCKET & GEAR — MARTIN SPROCKET & GEAR 06B30
- Metric B Style sprockets are flat sprockets with a hub extension on one side.
- These plain bore sprockets can easily be bored to a metric or standard size to fit your application.
- Keyways, set screws and harden teeth are quick alterations that can be made.
- Tolerances meet or exceed ISO standards
- Manufactured of high carbon steel
Specifications
| Brand | MARTIN SPROCKET & GEAR |
| Category | STOCK BORE SPROCKETS |
| Chain number & pitch | 06B / 3/8 in |
| Caliper diameter | 14.4 mm |
| Chain / sprocket type | Metric Roller Chain |
| Pitch diameter | 91.1 mm |
| Hub outside diameter | 60 mm |
| Maximum bore diameter | 38 mm |
| Hub style | B |
| Tooth width | 15 mm |
| Number of teeth | 30 |
| Tooth thickness | 5 mm |
| Bore type | Reboreable |
| Chain roller diameter | 6.35 mm |
| Bore diameter | 12 mm |
| Chain roller width | 0.28 mm |
| Number of strands across | 1 |
| Storage dimension height | 1.18 mm |
| Material | Steel |
| Storage dimension length | 3.81 mm |
| Number of hubs | 1 |
| Storage dimension width | 3.81 mm |
| Length through bore | 30 mm |
| Surface treatment | Protective Coating |
| Hardened teeth | Non-Hardened Teeth |
| Manufacturer upc number | 697950395715 |
| Pitch type | Single |
| Hub diameter | 60 mm |
| Weight | 1.7 lbs |
| Outside diameter | 96.7 mm |
