SPHERCO (RBC BEARINGS) CFM4Y

Name: SPHERCO (RBC BEARINGS) CFM4Y
Brand: SPHERCO (RBC BEARINGS)
SKU: CFM4Y

#CFM4Y On request

Category SPHERICAL ROD ENDS

Part Number CFM4Y

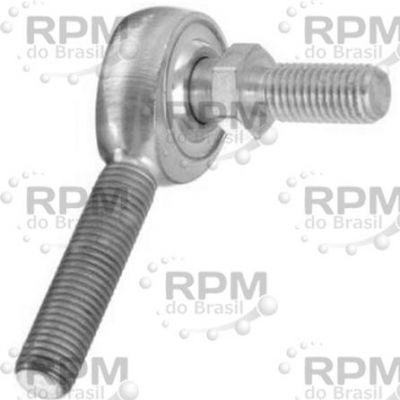

CFM4Y ROD END

Manufacturer description

Spherco® Spherical Rod End - Grade: Commercial Extra Capacity, Bore Diameter: 0.2500 in, Shank Thread Size: 1/4-28, Non-Lubricatable

Price on request — a consultant will confirm lead time and terms.

Talk to a technical consultant

Specifications

Brand	SPHERCO (RBC BEARINGS)
Category	SPHERICAL ROD ENDS
Bore diameter	0.25 in
Radial static load capacity	2000 lbf
Misalignment angle	8 º
Maximum operating temperature	250 ºF
Shank thread length	1 in
Operating temperature range	Max 250 °F
Rod end type	Male Threaded with Male Stud
Head diameter	0.75 in
Shank thread size	1/4-28
Head width	0.281 in
Thread direction	Right Hand
Ball diameter	0.515 in
Grade	Commercial Extra Capacity
Ball width	0.375 in
Thread type	UNF-3A
Length to ball center	1.562 in
Lubrication type	Non-Lubricatable
Overall height	1.937 in
Housing material	Carbon Steel
Series	CFM Series 2 Piece - Metal-to-Metal
Ball material	52100 Alloy Steel
Manufacturer product page	http://rbcbearings.stage.thomasnet-navigator.com/item/all-categories/end-bearing-series-cfm-male-2-piece-metal-to-metal/cfm4y
Finish/coating	Steel
Manufacturer upc number	637400181185
Race material	Steel
Weight	0.05 lbs
