TB WOODS (ALTRA)
Call
TB WOODS (ALTRA) 7S30MM
#7S30MM
On request

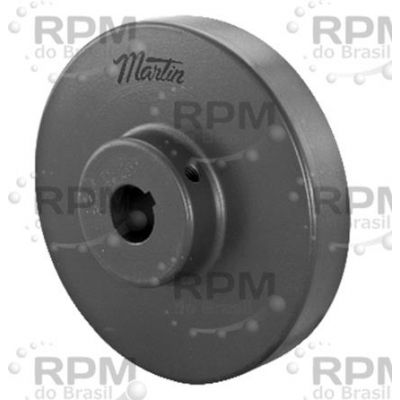

7S X 30MM SURE-FLEX FLANGE
Manufacturer descriptionSleeve Coupling Flange - Spacer Flange, Size 7, 30 mm Bore, Cast Iron
Price on request — a consultant will confirm lead time and terms.
Need to confirm compatibility?
Talk to a technical consultant
Specifications
| Brand | TB WOODS (ALTRA) |
| Category | SLEEVE COUPLING FLANGES |
| Bore diameter | 30 mm |
| Hub material | Cast Iron |
| Flange diameter | 4.625 in |
| Coupling overall length | 2-13/16 in |
| Length through bore | 1-27/32 in |
| Hub end outside diameter | 3-15/16 in |
| Hub flange type code | S |
| Torque capacity | 2875 in-lbs |
| Coupling size code | 7 |
| Maximum rpm | 5250 RPM |
| Bore type | Finished w/ Keyway |
| Horsepower @ 100 rpm | 4.6 (Thermoplastic Elastomer) , 1.2 (EPDM & Neoprene) hp |
| Hub type | Spacer Flange |
| Series | Sure-Flex |
