WEG ELECTRIC CORPORATION 15036OT3H405TS
#15036OT3H405TS
On request

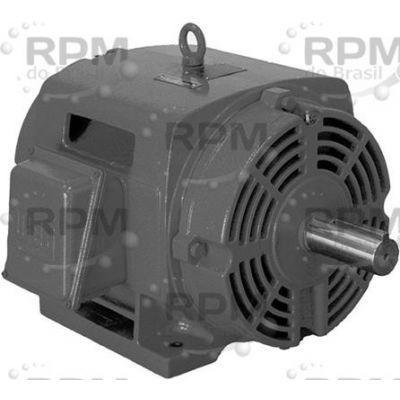

General Purpose Motor - 3 ph, 150 hp, 3600 rpm, 575 V, 404/5TS Frame, ODP (Open Drip-Proof) Enclosure, 60 Hz, Footed Mount
Price on request — a consultant will confirm lead time and terms.
Need to confirm compatibility?
Talk to a technical consultant
Specifications
| Brand | WEG ELECTRIC CORPORATION |
| Category | GENERAL PURPOSE MOTORS |
| Motor phase | 3 ph |
| Volts @ frequency | 575 @ 60 V, Hz |
| Motor horsepower | 150 hp |
| Overall length (c-dimension) | 31.14 in |
| Synchronous rpm | 3600 rpm |
| Service factor | 1.15 |
| Motor supply voltage | 575 V |
| Frame material | Cast Iron |
| Frame size | 404/5TS |
| Insulation class | F |
| Enclosure type | ODP (Open Drip-Proof) |
| Ip rating | 23 |
| Frequency rating | 60 Hz |
| Standards met | UL, CSA, CE |
| Mounting type | Footed |
| Weight | 1113 lbs |
| Duty / condition type | Continuous Duty |
| Harmonization code | 8501.53.4080 |
| Full load current | 130.00 A |
| Full load efficiency | 0.945 |
